Carbon Steel Double Drum Hot Air Dryer Machine PLC Control Steam Thermal Oil Heating Medium

  • 1
  • 2
  • 3

Brand Name : YIBU

Model Number : HG

Certification : CE / UL / SGS / EAC / CR – TU

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 20 SETS PER MONTH

Delivery Time : 10 WEEKS

Packaging Details : Woodencase

Metal material : SUS316/SUS304/ CARBON STEEL ,ETC

Heat source : Steam / hot water / thermal oil

Weight : 5000-20000kg

Power : Customized

Water evaporation : 5-2000kg

Motor : ABB / SIEMENS/

Contact Now

HG Series Drum drying machine( drum dryer)

Preface

HG Series Drum Dryer(Flaker) is a kind of rotating continuous drying equipment with internal heating conducting-style. Certain thickness of materials film attach to the drum from material liquid vessel under the drum. Heat is transferred to the internal wall of the cylinder through pipes and then to the external wall and to materials film, to evaporate the moisture in materials film so as to dry materials. Dried products are then scraped off by the blade fitted on the surface of the cylinder, fall down to the spiral conveyor under the blade, and are conveyed, collected and packed.

Applications
It is suitable for drying liquid raw materials or thick liquid in chemical, dyestuff, pharmaceutical, foodstuff, metallurgy and so on industries.

Model Size of rotary drummm Effective of heating aream2 Drying capacitykg/h Steam consumptionkg/h Power of motorkw Overall dimentsionmm Weight
HG-600 600800 1.12 40-70 100-175 1.1 17008001500 800
HG-700 7001000 1.65 60-90 150-225 2.05 210010001800 1210
HG-800 8001200 2.26 90-130 225-325 3.75 250011001980 1700
HG-1000 10001400 3.30 130-190 325-475 4.75 270013002250 2100
HG-1200 12001500 4.24 160-250 400-625 4.75 280015002450 2650
HG-1400 14001600 5.28 210-310 525-775 6.25 315017002800 3220
HG-1600 16001800 6.79 270-400 675-1000 6.25 335019003150 4350
HG-1800 18002000 8.48 330-500 825-1250 8.6 360020503500 5100
HG-1800A 18002000 10.60 420-630 1050-1575 8.6 410020503500 6150

Feature

1.High heat efficiency. The principle of heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical in the whole operation circle. Except heat loss of end cover and radiation loss, all heat can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2. Large operation elasticity and wide application. Various drying factors of the dryer can be adjusted, such as concentration of feeding liquid/thickness of material film, temperature of heating medium, rotating speed of the drum etc. which can change drying speed of the under dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry various materials and to meet different requirements of production.
3. Short drying period. The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive materials. It can also be pressure reducing operated if it is put in vacuum vessel.
4. Fast drying rate. As film of materials coated on the wall of the cylinder is very thin. Normal, thickness is 0.3 to 1.5mm, plus directions of heat and mass transmitting are identical, the evaporation strength on the surface of the film can be 20-70 kg.H2O/m2.h.
5. If vacuum system is equipped with this machine , it will become vacuum drum dryer.(vacuum flaker)

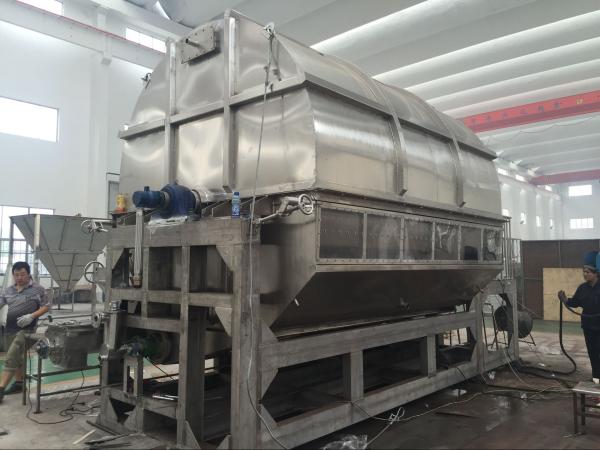

Carbon Steel Double Drum Hot Air Dryer Machine PLC Control Steam Thermal Oil Heating Medium

Carbon Steel Double Drum Hot Air Dryer Machine PLC Control Steam Thermal Oil Heating Medium
